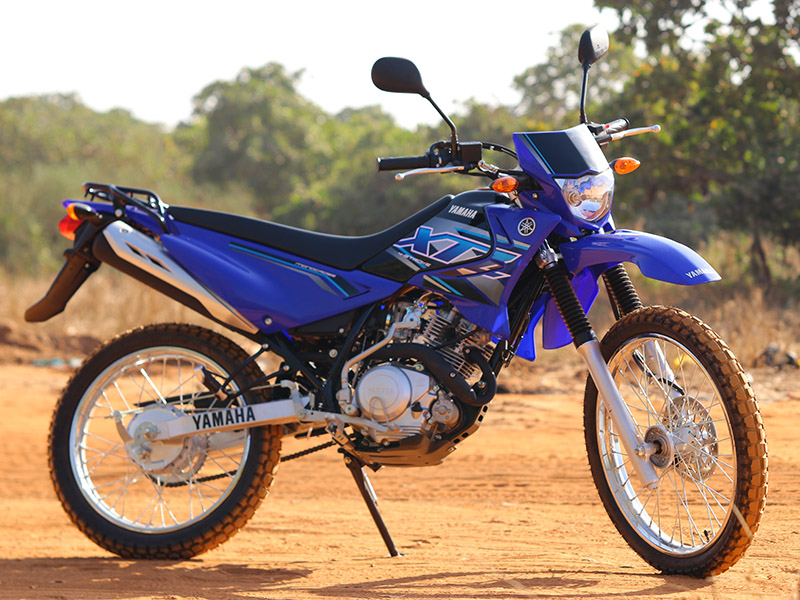

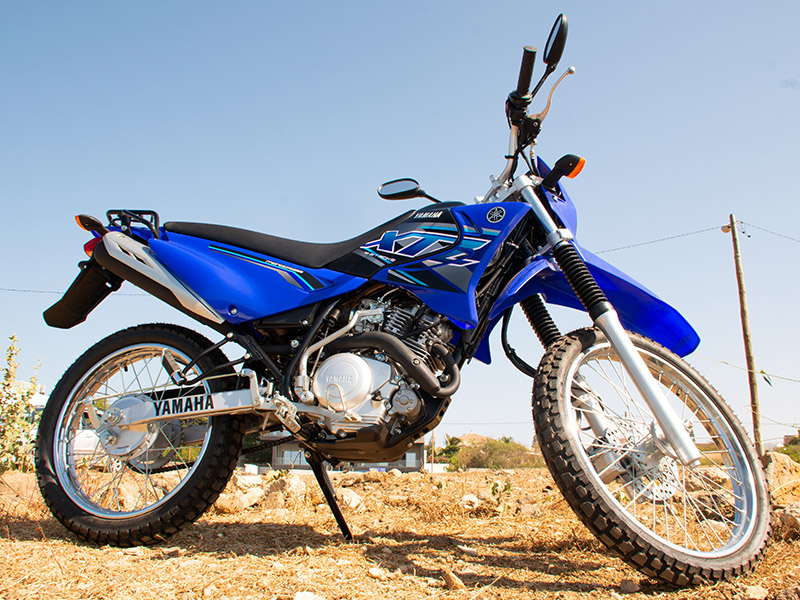

Xtz125

With a 4-stroke engine, the XTZ125E off road is built with all the R&D and technology that YAMAHA developped in the last years to give you a perfect ratio between performance and pricing. It will answer to all your wishes on the road or on the track as well.

Technical Specifications

MOTOR

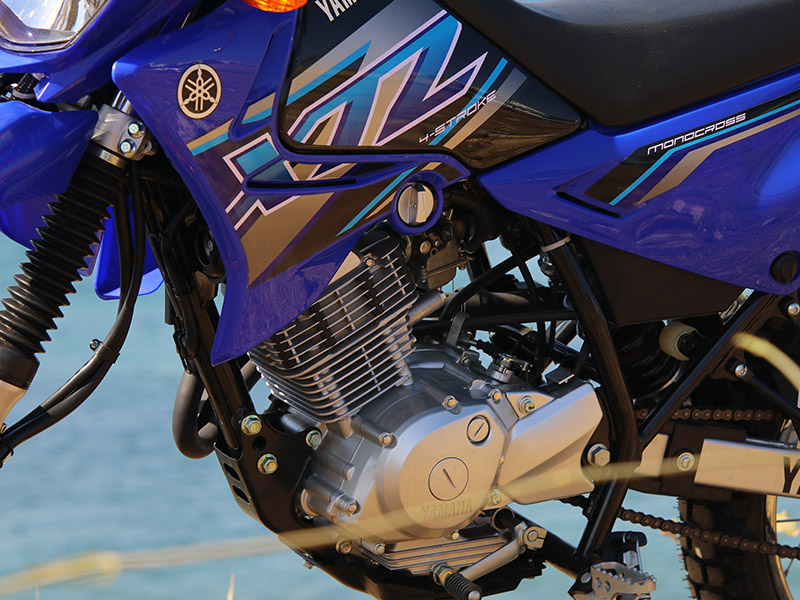

• Engine type : Single cylinder, 4-stroke, SOHC, 2-valves
• Displacement (cc) : 125
• Starter system : Kick and electric starter

CHASSIS

• Front suspension system : Telescopic fork
• Front brake : Simple disk
• Wheels : Spoke

DIMENSIONS

• Overall dim - L x w x h (mm) : 2090*830*1115
• Seat height (mm) : 840
• Min ground clearance (mm) : 260

TRANSMISSION

• Transmission system : 5-speed constant mesh

WEIGHT/CAPACITIES

• Dry weight (kg) : 107
• Fuel tank capacity (L) : 11
• Number of seats : 2

WARRANTY

• Retail Network : Yamaha

More information

Loading...

•
•
•

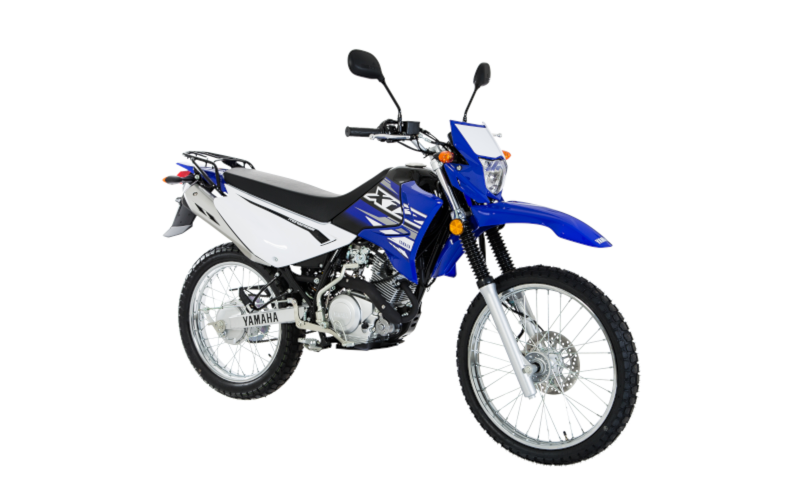

XTZ125E

Disc brake

Electric starter

Kick starter

Luggage rack

Spoke wheels

Technical Specifications Spec sheet

XTZ125 XTZ125E

Technical Specifications

MOTOR
Bore x Stroke (mm)	54,0*54,0
Compression ratio	10,0 : 1
Cooling system	Air-cooled
Displacement (cc)	125
Engine type	Single cylinder, 4-stroke, SOHC, 2-valves
Fuel delivery	Carburetor
Ignition system	CDI
Lubrification system	Wet sump
Maximum power (hp / rpm)	10 / 8000
Maximum torque (N.m / rpm)	11,6 / 6500
Starter system	Kick and electric starter
CHASSIS
Frame	Diamond
Front brake	Simple disk
Front suspension system	Telescopic fork
Front tyre	80/90-21 M/C 48P
Rear brake	Drum
Rear suspension system	Swingarm
Rear tyre	100/80-18 M/C 58P
Wheels	Spoke
DIMENSIONS
Min ground clearance (mm)	260
Overall dim - L x w x h (mm)	2090*830*1115
Seat height (mm)	840
Wheelbase (mm)	1340
TRANSMISSION
Transmission system	5-speed constant mesh
WEIGHT/CAPACITIES
Dry weight (kg)	107
Fuel tank capacity (L)	11
Number of seats	2

Equipments

EQUIPMENT
Disc brake	Yes
Electric starter	Yes
Kick starter	Yes
Luggage rack	Yes
Spoke wheels	Yes

Non-contractual images
